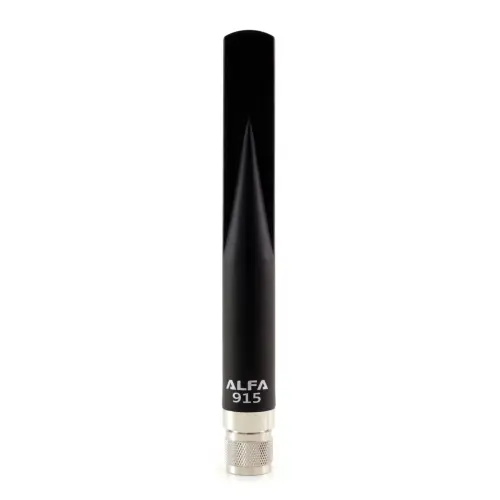

Alfa AOA Omni
Alfa | Part: AOA-915-5ACM
$13.85 - $16.97USD
5dBi Omni Outdoor
Suggested Antenna
This antenna was tested by the community and is recommended for use with mesh networking devices.
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency902-928 MHz
- Connector TypeN-Type Male
- VSWR (915MHz)1.057:1
- CategoryFixed (Base) Antennas
- Gain5 dBi
- Length177 mm
- Width21.5 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.021:1
915MHz
VSWR: 1.057:1
928MHz
VSWR: 1.118:1
Notes from test
No notes available
Tested By
Ben Lipsey, K1PDX (pdxlocs) on 12 August 2023
Manufacturer Information
Brand
Alfa
Part Number
AOA-915-5ACM
Frequency Specification
902-928 MHz
Connector Type
N-Type Male
Description
5dBi Omni Outdoor
