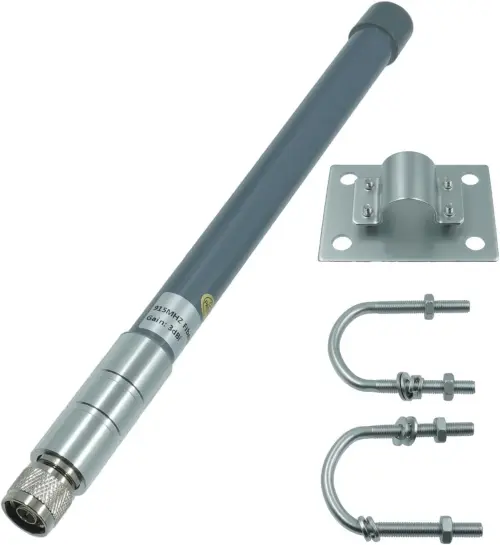

Canadian Wireless Supply 3 dBi Fiberglass

Canadian Wireless Supply | Part: B0BSXWY4G3

$25.00USD

Compact 915 MHz outdoor LoRa antenna with N-Male connector. Slightly mistuned VSWR but acceptable for general use in the ISM band.

Suggested Antenna

This antenna was tested by the community and is recommended for use with mesh networking devices.

Purchase Options

Buy from Amazon (Canada) ($25 CAD)

View Datasheet

Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.

Key Specifications

Frequency902-928 MHz
Connector TypeN-Type Male
VSWR (915MHz)1.643:1
CategoryFixed (Base) Antennas
Gain3 dBi
Length300 mm
Width23 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.670:1

915MHz

VSWR: 1.643:1

928MHz

VSWR: 1.608:1

Notes from test

Tuning is a little off. Vendor specifies 1.5 SWR between 902 and 928 MHz, not true here, but should be OK to use.

Tested By

Frank's 3D Shop on 2024-03-03

Manufacturer Information

Brand

Canadian Wireless Supply

Part Number

B0BSXWY4G3

Frequency Specification

902-928 MHz

Connector Type

N-Type Male

Description

Lora Outdoor Antenna 30cm
