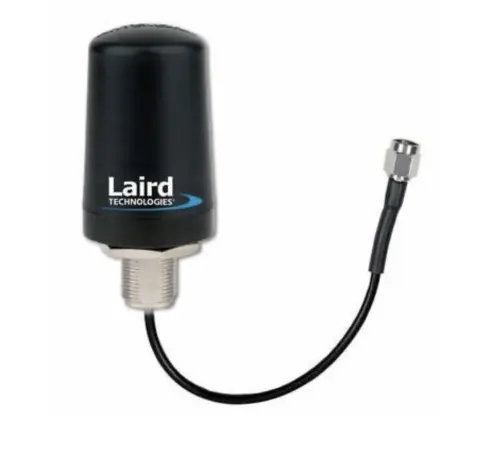

Laird TRA9020S3CBN

TE Connectivity / Laird | Part: TRA9020S3CBN

$48.95USD

Permanent-mount Phantom-style 902–928 MHz antenna designed by Laird for US government use. No ground plane required. Reliable and rugged.

Suggested Antenna

This antenna was tested by the community and is recommended for use with mesh networking devices.

Purchase Options

Buy from TheAntennaFarm.com ($48.95)

View Datasheet

Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.

Key Specifications

Frequency902-928 MHz
Connector TypeNMO
VSWR (915MHz)1.335:1
CategoryVehicle Antennas
Gain3 dBi
Length68.6 mm
Width38.1 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.573:1

915MHz

VSWR: 1.335:1

928MHz

VSWR: 1.457:1

Notes from test

Antenna is within manufacturer published specifications of <2:1 VSWR. This model is a permanent mount, black Phantom-style antenna designed for government use. Civilian equivalent is the Laird TRAB9023NP.

Tested By

Ric Letson, NB2E on 2022-03-02

Manufacturer Information

Brand

TE Connectivity / Laird

Part Number

TRA9020S3CBN

Frequency Specification

902-928 MHz

Connector Type

NMO

Description

902-928 MHz Phantom Model 3dBi
