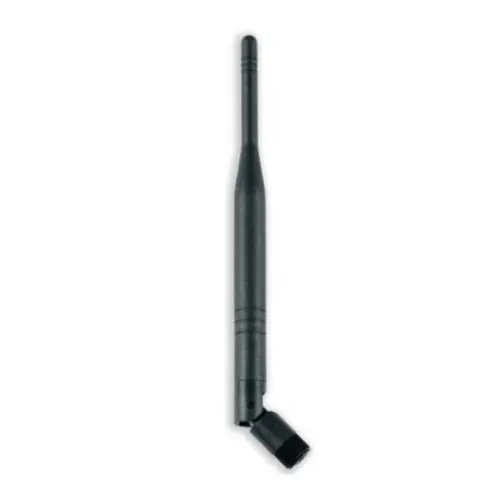

Pulse Larsen SMA W1063M

Pulse Larsen | Part: W1063M

$8.51 - $9.33USD

Compact and affordable 868–928 MHz antenna with strong VSWR performance. Ideal for handheld or mobile 915 MHz LoRa deployments.

Suggested Antenna

This antenna was tested by the community and is recommended for use with mesh networking devices.

Purchase Options

Buy from Mouser ($8.51)

Buy from Digikey ($9.33)

View Datasheet

Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.

Key Specifications

Frequency862-876 MHz, 902-928 MHz
Connector TypeSMA Male
VSWR (915MHz)1.332:1
CategoryPortable Antennas
Gain1 dBi
Length195 mm
Width13 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.480:1

915MHz

VSWR: 1.332:1

928MHz

VSWR: 1.401:1

Notes from test

Antenna far exceeds the manufacturer’s published specification of <2:1 VSWR. Seems like a great low-cost option.

Tested By

Ric Letson, NB2E (RicInNewMexico) on 2022-03-02

Manufacturer Information

Brand

Pulse Larsen

Part Number

W1063M

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

SMA Male

Description

868-928MHz 1dBi SMA Male
