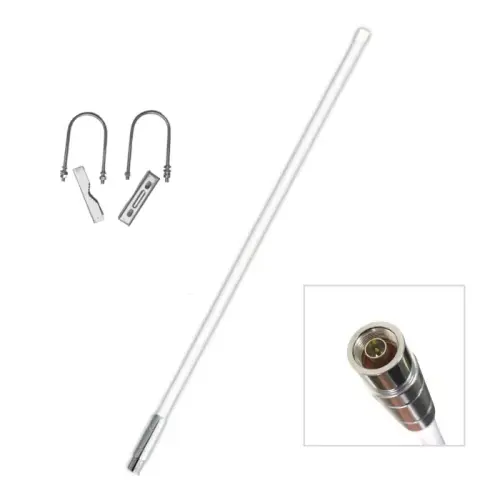

Rokland 5.8dBi Large Profile Fiberglass

Rokland | Part: UNKNOWN

$39.97USD

High-gain 915 MHz fiberglass antenna from Rokland. Large profile and solid VSWR across the ISM band make it ideal for base stations needing extended range.

Suggested Antenna

This antenna was tested by the community and is recommended for use with mesh networking devices.

Purchase Options

Buy from Rokland ($39.97)

View Datasheet

Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.

Key Specifications

Frequency862-876 MHz, 902-928 MHz
Connector TypeN-Type Male
VSWR (915MHz)1.013:1
CategoryFixed (Base) Antennas
Gain5.8 dBi
Length800 mm
Width25 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.062:1

915MHz

VSWR: 1.013:1

928MHz

VSWR: 1.074:1

Notes from test

No notes available

Tested By

Ben Lipsey, K1PDX (pdxlocs) on 2023-08-12

Manufacturer Information

Brand

Rokland

Part Number

UNKNOWN

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

N-Type Male

Description

5.8 dBi Large Profile
