Linx PCB Flex
TE Connectivity / Linx Technologies | Part: ANT-8/9-FPC-UFL-100
Antenna FPC 868/915MHz 1.13
Suggested Antenna
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector Typeu.FL/IPEX
- VSWR (915MHz)1.704:1
- CategoryInternal Device Antennas
- Gain<0 dBi
- Length39 mm
- Width15 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.752:1
915MHz
VSWR: 1.704:1
928MHz
VSWR: 1.711:1
Notes from test

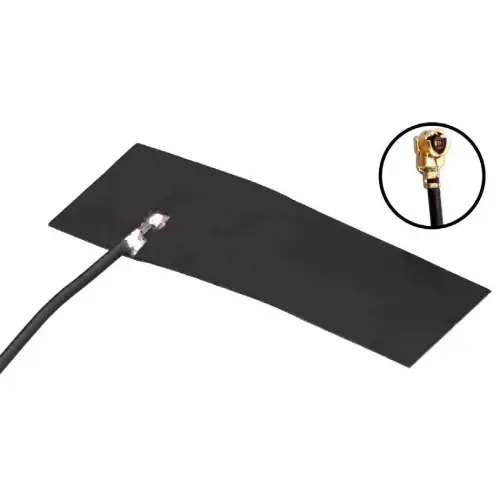

Antenna flex PCB measures 39x15mm and has a 100mm micro coaxial cable terminated in a u.FL connector. Lowest VSWR during testing was achieved by placing a 5mm x 1.5mm strip of foil tape approximately 3.5cm below, and parallel to, the antenna PCB element. Similar effect could also be produced by using the antenna's adhesive strip to mount the antenna approximately 3.5cm above and parallel to the device PCB to which the antenna connector will be attached.
Tested By
Ric Letson, NB2E (RicInNewMexico) on 15 September 2023
Manufacturer Information
Brand
TE Connectivity / Linx Technologies
Part Number
ANT-8/9-FPC-UFL-100
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
u.FL/IPEX
Description
Antenna FPC 868/915MHz 1.13
