TE Connectivity ANT-916-CW-RCS
TE Connectivity Linx | Part: ANT-916-CW-RCS
Compact 915MHz whip antenna with RP-SMA connector, designed for sub-GHz ISM applications. Performs best with a ground plane.
Suggested Antenna
Purchase Options
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- Frequency862-876 MHz, 902-928 MHz
- Connector TypeRP-SMA Male
- VSWR (915MHz)1.202:1
- CategoryPortable Antennas
- Gain3.3 dBi
- Length54 mm
- Width9.4 mm
Test Results
Test #1
VSWR Measurements
902MHz
VSWR: 1.353:1
915MHz
VSWR: 1.202:1
928MHz
VSWR: 1.289:1
Notes from test
Antenna performs well but requires a ground plane. Depending on the device construction, this antenna may not perform well, especially if the amount of material available for a ground plane is low. Ensure your device gives ample clearance above the SMA connector to prevent reflections. SWR is within manufacturer specification of designed frequency range, and has remarkably good performance in the 915Mhz frequency band.
Tested By
Bradyn Claycomb (KC3IJL) on 2024-05-15
Manufacturer Information
Brand
TE Connectivity Linx
Part Number
ANT-916-CW-RCS
Frequency Specification
862-876 MHz, 902-928 MHz
Connector Type
RP-SMA Male
Description

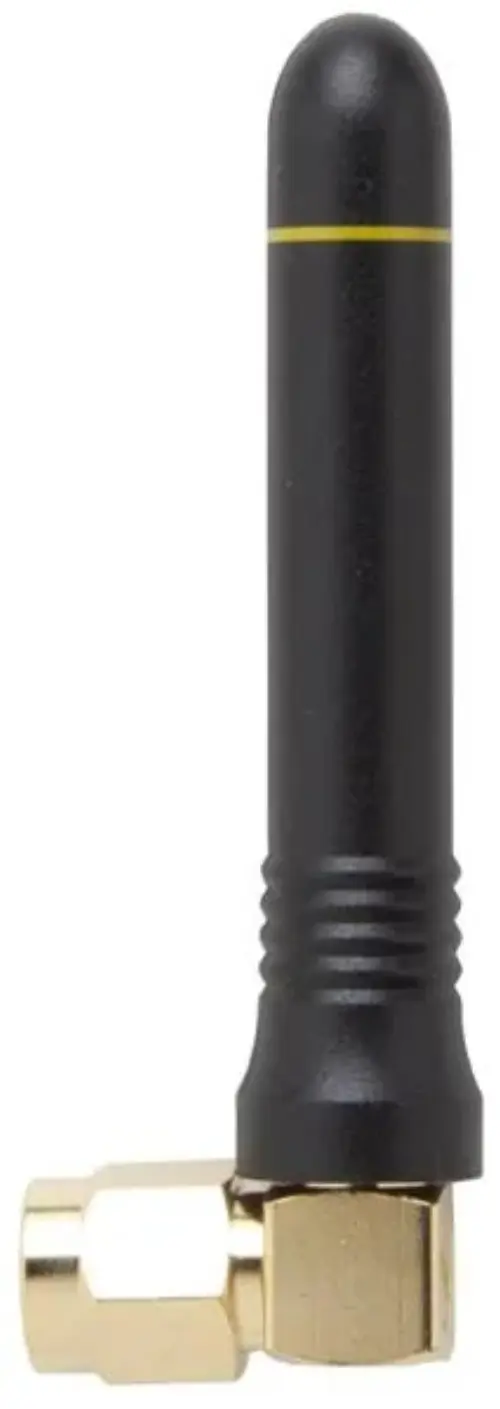

RP-SMA male right-angle whip. 3.3dBi. 1.9SWR
