T-Lora Pager

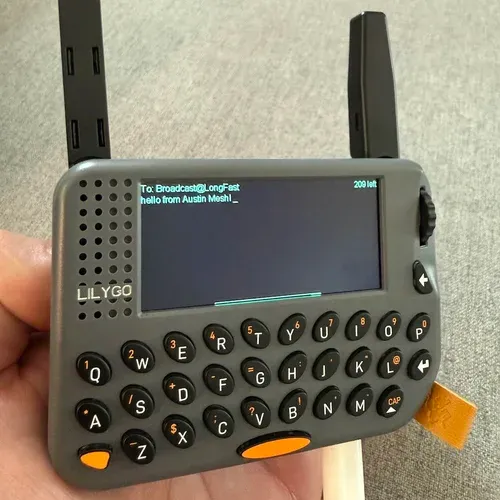

LILYGO T-Lora Pager
ESP32-S3 handheld with a 2.33-inch IPS strip display, full QWERTY keyboard, rotary encoder, GPS, and SX1262 LoRa. Runs Meshtastic, MeshCore.
Comments from the Austin Mesh Community
Purchase Options
Prices may vary by supplier. Click to check current pricing.
Some of these links are affiliate links. Any commission we earn helps support RF Index at no extra cost to you.
Key Specifications
- MicrocontrollerESP32-S3
- LoRa Frequencies433 MHz, 868 MHz, 915 MHz
- Estimated Runtime<24 hours
- Power ConsumptionAverage
Technical Specifications
LoRa Frequencies
433 MHz, 868 MHz, 915 MHz
Microcontroller
ESP32-S3
Power Consumption
Average
Antenna
Foldable external LoRa antenna
Battery Type
LiPo
Battery Capacity
1500 mAh
Estimated Runtime
<24 hours
Interfaces
USB-C, MicroSD, Speaker, Microphone, 3.5mm audio
Features
QWERTY Keyboard
Advanced feature enhancing device capabilities and performance.
Rotary Encoder
Advanced feature enhancing device capabilities and performance.
IPS Display
Advanced feature enhancing device capabilities and performance.
WiFi
Integrated WiFi module for local network connectivity and cloud integration.
Bluetooth
Bluetooth support for local device configuration and connectivity.
SX1262
Semtech SX1262 LoRa transceiver for long-range communication capabilities.
GPS
Built-in GPS module for location tracking and geofencing capabilities.
NFC
Advanced feature enhancing device capabilities and performance.
IMU
Advanced feature enhancing device capabilities and performance.
