RP-SMA male right-angle whip. 3.3dBi. 1.9SWR

Suggested

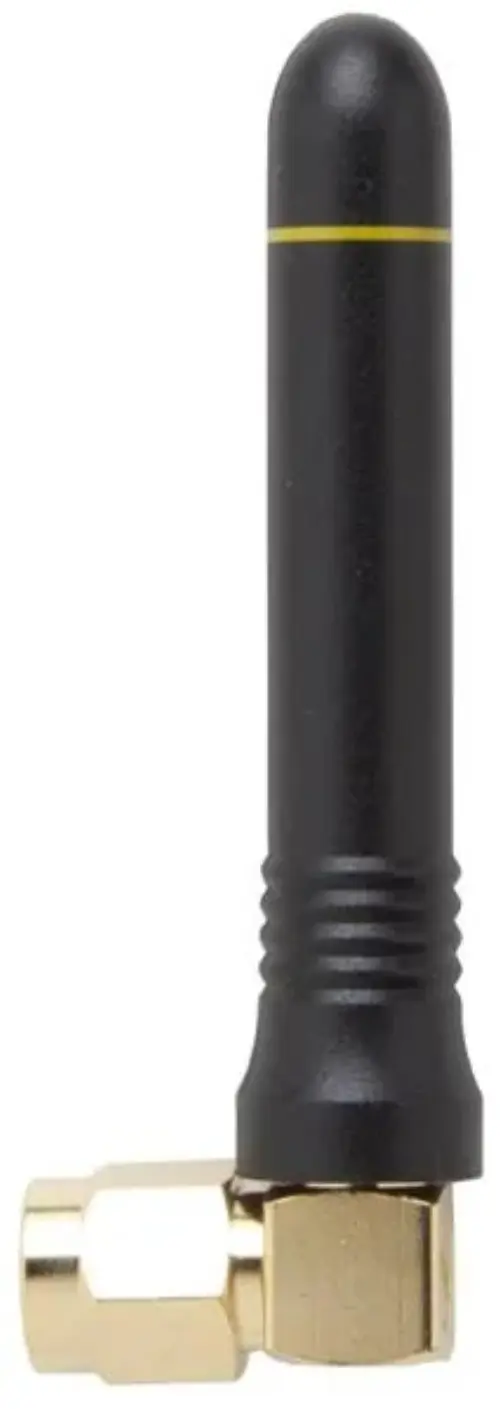

TE Connectivity ANT-916-CW-RCS

TE Connectivity Linx | Part: ANT-916-CW-RCS

$6.54 - $6.63USD

Compact 915MHz whip antenna with RP-SMA connector, designed for sub-GHz ISM applications. Performs best with a ground plane.

Suggested Antenna

This antenna was tested by the community and is recommended for use with Meshtastic devices.

Purchase Options

Buy from DigiKey ($6.54)

Buy from Mouser ($6.63)

View Datasheet

Key Specifications

Frequency862-876 MHz, 902-928 MHz
Connector TypeRP-SMA Male
VSWR (915MHz)1.202:1
CategoryPortable Antennas
Gain3.3 dBi
Length54 mm
Width9.4 mm

Test Results

Test #1

VSWR Measurements

902MHz

VSWR: 1.353:1

915MHz

VSWR: 1.202:1

928MHz

VSWR: 1.289:1

Notes from test

Antenna performs well but requires a ground plane. Depending on the device construction, this antenna may not perform well, especially if the amount of material available for a ground plane is low. Ensure your device gives ample clearance above the SMA connector to prevent reflections. SWR is within manufacturer specification of designed frequency range, and has remarkably good performance in the 915Mhz frequency band.

Tested By

Bradyn Claycomb (KC3IJL) on 2024-05-15

Manufacturer Information

Brand

TE Connectivity Linx

Part Number

ANT-916-CW-RCS

Frequency Specification

862-876 MHz, 902-928 MHz

Connector Type

RP-SMA Male

Description

RP-SMA male right-angle whip. 3.3dBi. 1.9SWR
